MachineValley Batch Sand Mill Machine grinds paints, inks, pigments, and resins into a fine, uniform particle size. Built for long shifts, easy to clean, and set up with media that suit your product.
| DETAILS | SM-100 | SM-200 | SM-300 | SM-500 | SM-1000 |
|---|---|---|---|---|---|
| WORKING CAPACITY | 100 LTR | 200 LTR | 300 LTR | 500 LTR | 1000 LTR |
| SS SHELL THICKNESS | 4MM | 6MM | 6MM | 6MM | 8MM |
| SHAFT DIAMETER | 55MM | 60MM | 65MM | 70MM | 70MM |
| MOTOR POWER | 7.5HP | 10HP | 15HP | 20HP | 25HP |
| MOTOR RPM | 0~1440 | 0~1440 | 0~1440 | 0~1440 | 0~1440 |
| MS JACKET | 4MM | 6MM | 6MM | 6MM | 8MM |
| GEAR TYPE | GEAR DRIVEN | GEAR DRIVEN | GEAR DRIVEN | GEAR DRIVEN | GEAR DRIVEN |
| BLADE TYPE | DISK TYPE | DISK TYPE | DISK TYPE | DISK TYPE | DISK TYPE |
| OUTLET VALVE (INCH) | 1.5 | 2 | 2 | 2 | 2 |

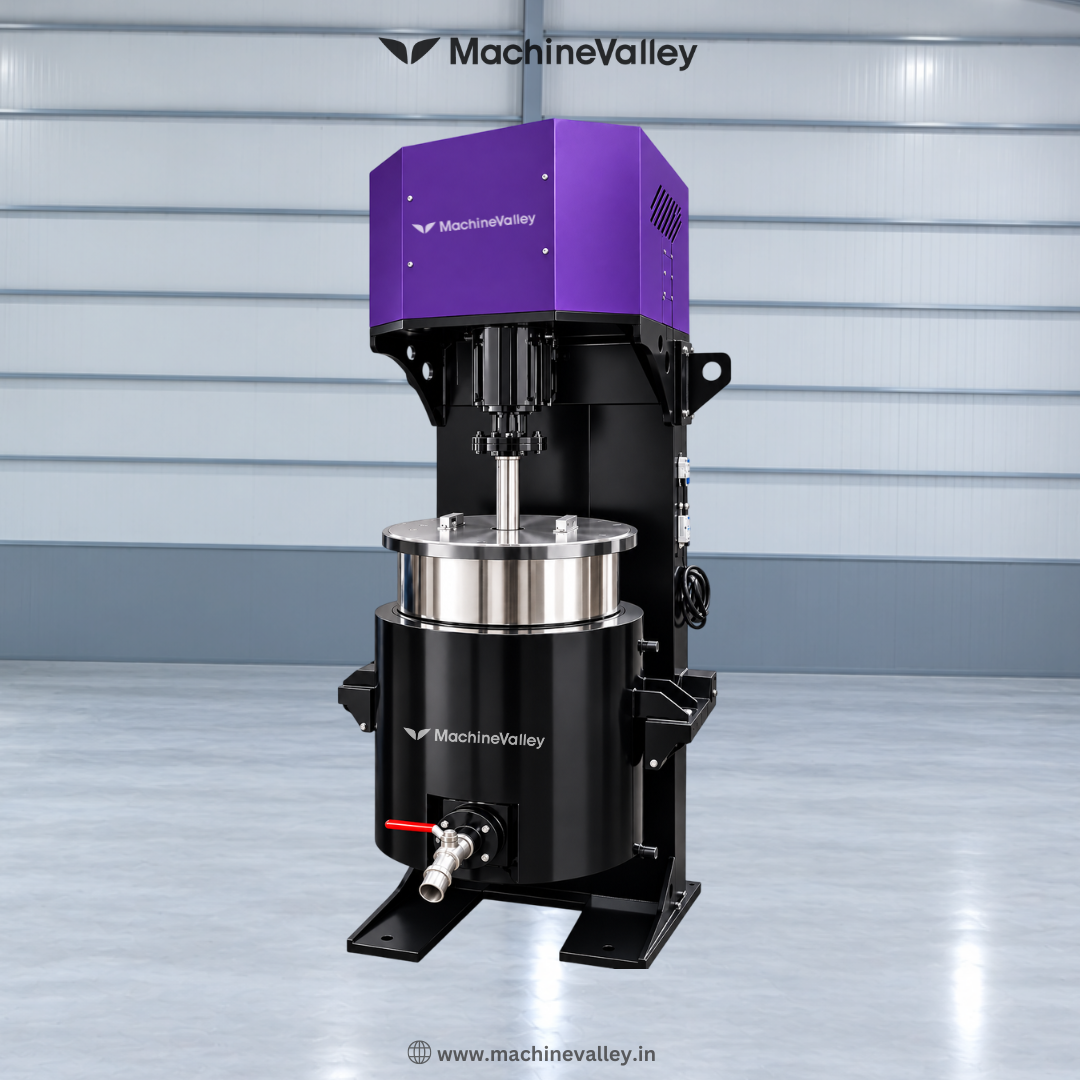

100-Liter Sand Mill
Compact Sand Mill for small-batch grinding using fine grinding media at high shear. Ideal for R&D labs and pilot-scale trials needing precise particle control. Delivers fine, uniform dispersion with quick changeover and low power draw.

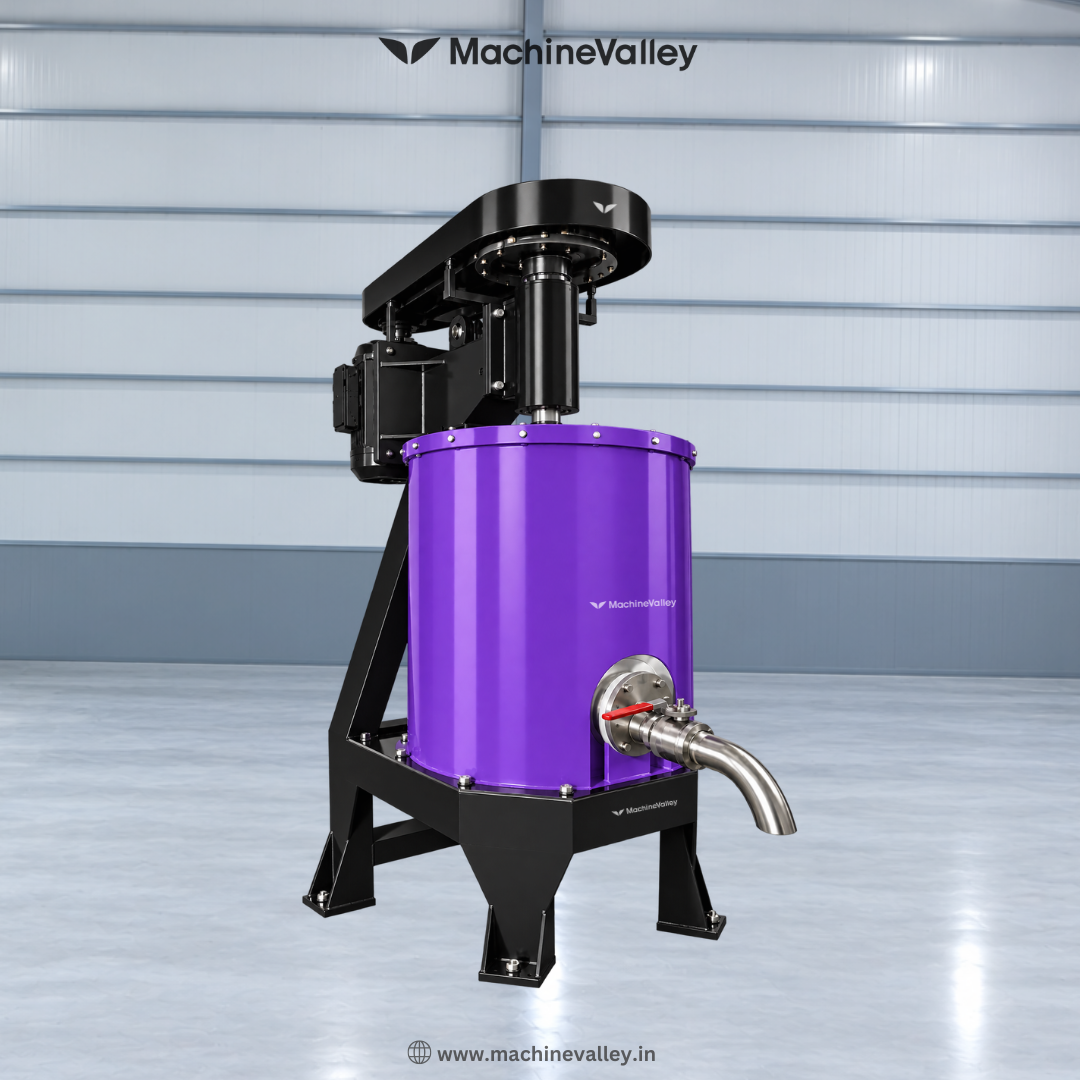

200-Liter Sand Mill
Mid-capacity Sand Mill for scaling production without losing grind fineness. Handles higher viscosity and pigment loads than the 100L unit while holding a tight particle-size distribution. Suited for regular production runs.

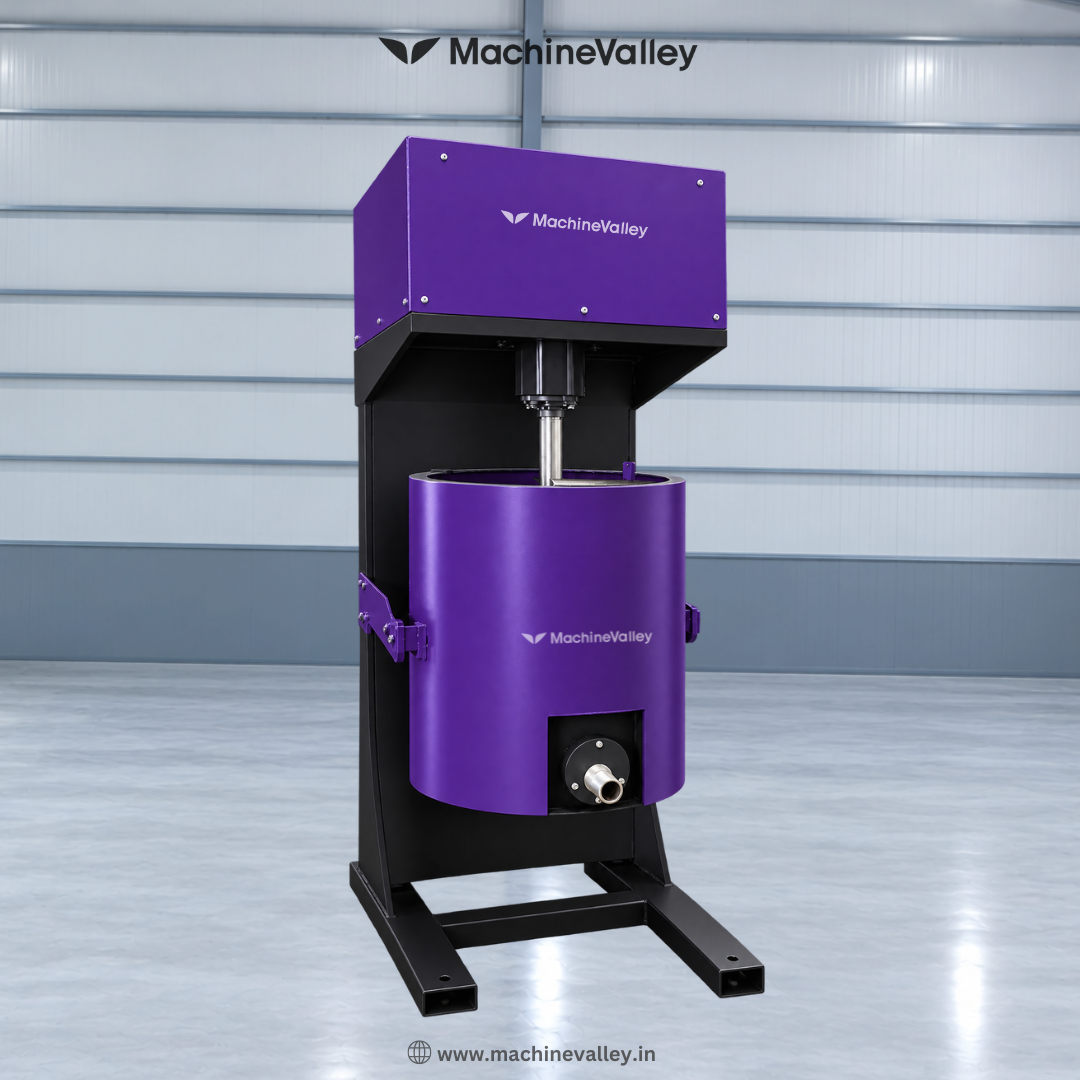

500-Liter Sand Mill
High-output Sand Mill for full-scale continuous operations. Larger grinding chamber and media volume support sustained batches with consistent fineness. Reinforced build and higher-capacity drive handle demanding dispersion loads.
1000-Liter Sand Mill
Heavy-duty Sand Mill for large-scale manufacturing needing maximum throughput. Robust frame and high-torque drive built for round-the-clock operation. Maintains fine, uniform dispersion at scale with low maintenance downtime.
Mostly units that run many colors or formulations in a week. You grind one lot, check it, and discharge it, so there is no cross-contamination worry and no long line to flush.
It varies with the product. A simple primer may be done in 30 to 45 minutes, while a high-gloss paint or fine ink can run a few hours. Your first trial batch will give you a time you can repeat.
Most shops use a Hegman gauge on the shop floor, and some also send samples for particle size analysis. Take a sample every 20 to 30 minutes and stop when the reading hits your target.
For paints and inks, zirconium silicate or zirconia beads are the usual pick. Smaller beads give a finer grind but flow more slowly, so match the size to your target. Fill about 70 to 80 percent of the chamber unless your product needs something else.
Run a compatible solvent or water through the chamber, drain it, and repeat until it runs clear. For light-to-dark color changes, you can often skip the deep clean, but go from dark to light only after a full wash.
