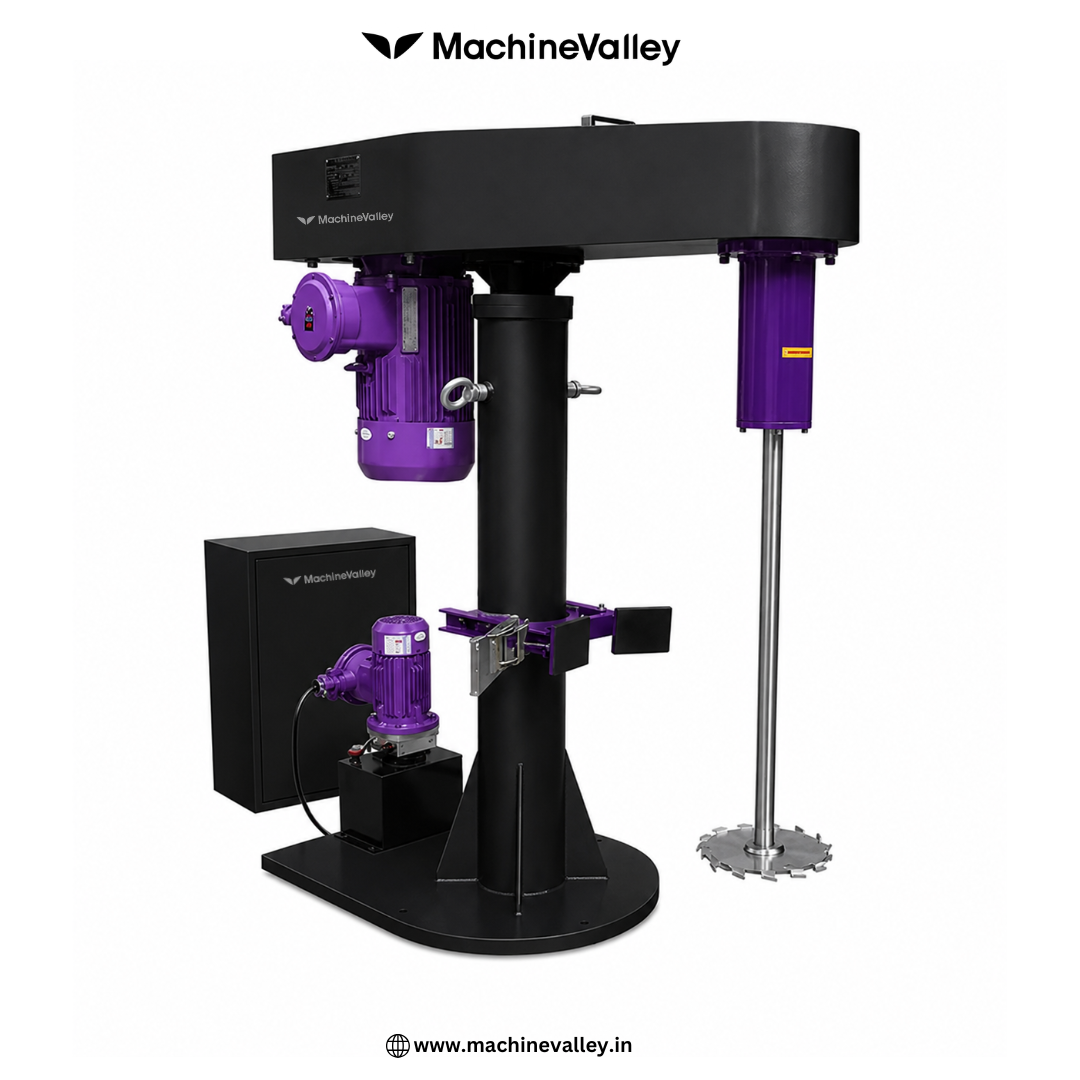

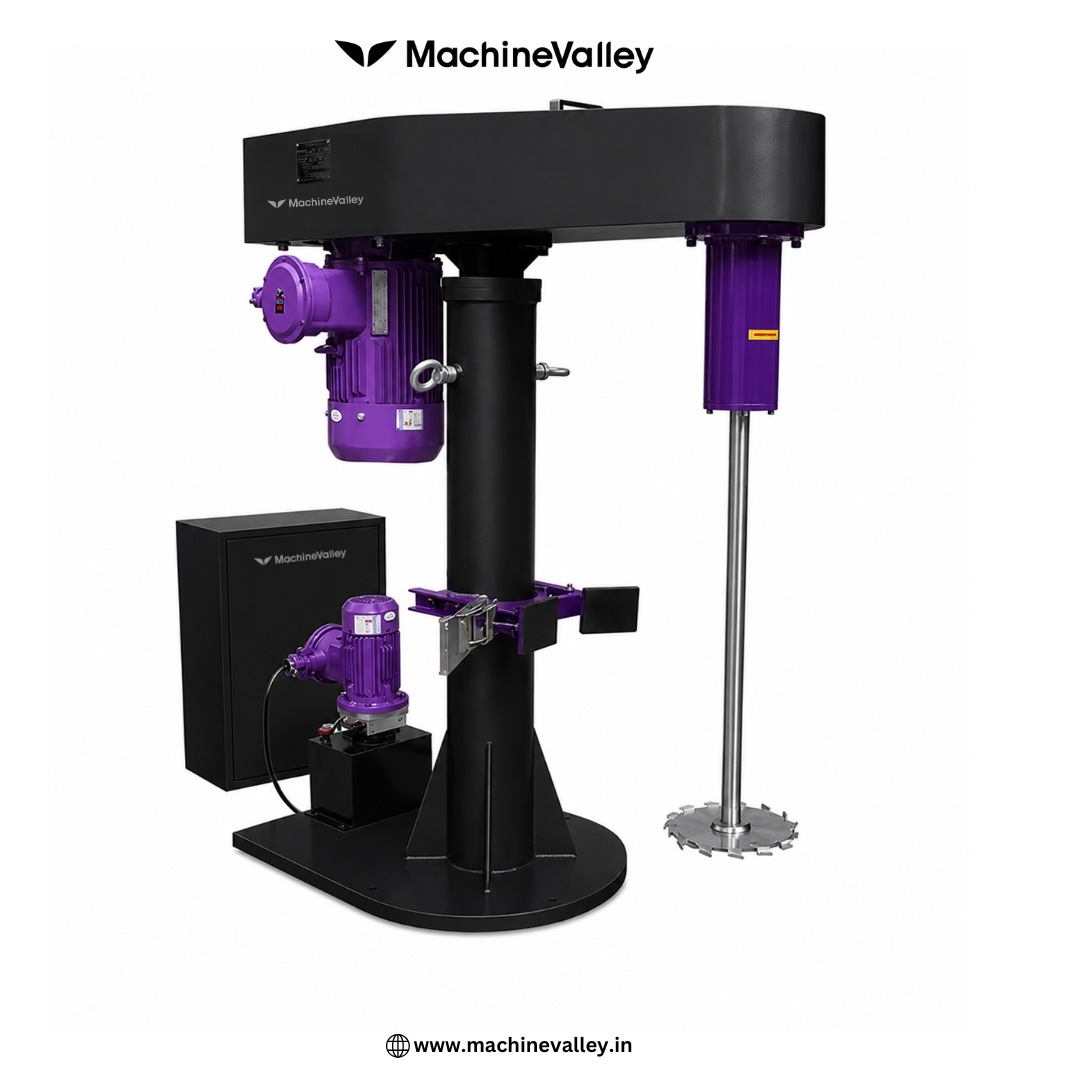

High-Speed Disperser - HSD

  • Precision VFD-Based Speed Controller.

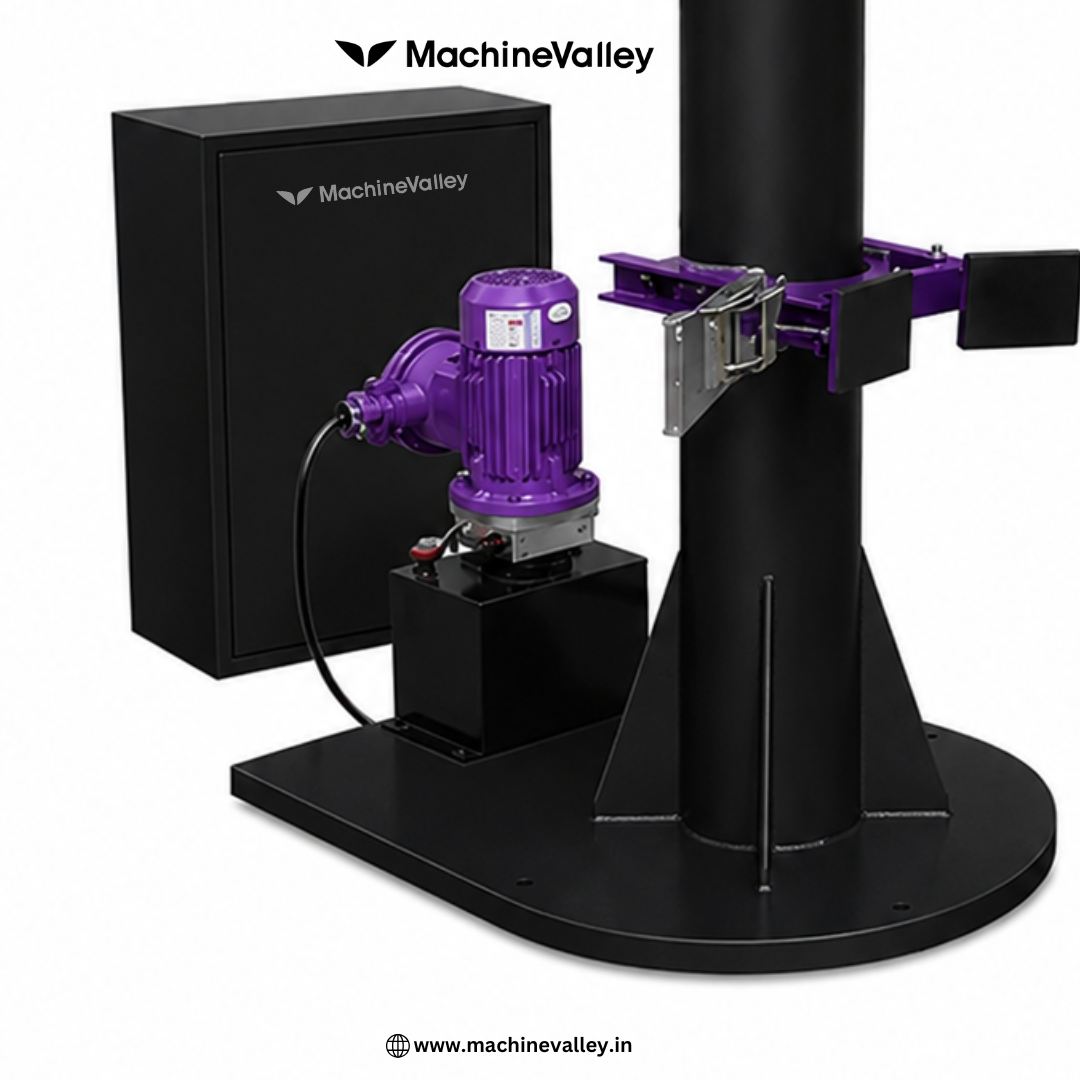

  • Robust Hydraulic Lifting Assembly.
  • Adjustable Operating Speed: 0–1440 RPM
  • High-Efficiency 10 HP Motor (ABB, or BB Make)
  • Industrial-Grade Tank Locking Clamp.
  • Backed by 12 Months of Onsite Warranty.

MachineValley High Speed Disperser is a high-performance industrial mixing machine designed for fast and efficient dispersion, blending, and homogenization of liquids and powders. It delivers uniform mixing, reduced processing time, and consistent product quality, making it ideal for paint, chemical, ink, adhesive, cosmetic, and pharmaceutical manufacturing applications.

HSD Series11 HS-0.5 HS-1 HS-1.5 HS-2
Working Capacity (LTR) 500 1000 1500 2000
Motor Power (HP) 5hp 10hp 15hp 25/30hp
Motor RPM 0~1440 0~1440 0~1440 0~1440
Shaft Diameter (MM) 45mm 55mm 65/70mm 80mm
Blade Diameter (MM) 150mm 200mm 250mm 300mm
Hydraulic Motor (HP) 1hp 1hp 1hp 1hp
Centre Distance 700mm 750mm 800mm 850mm

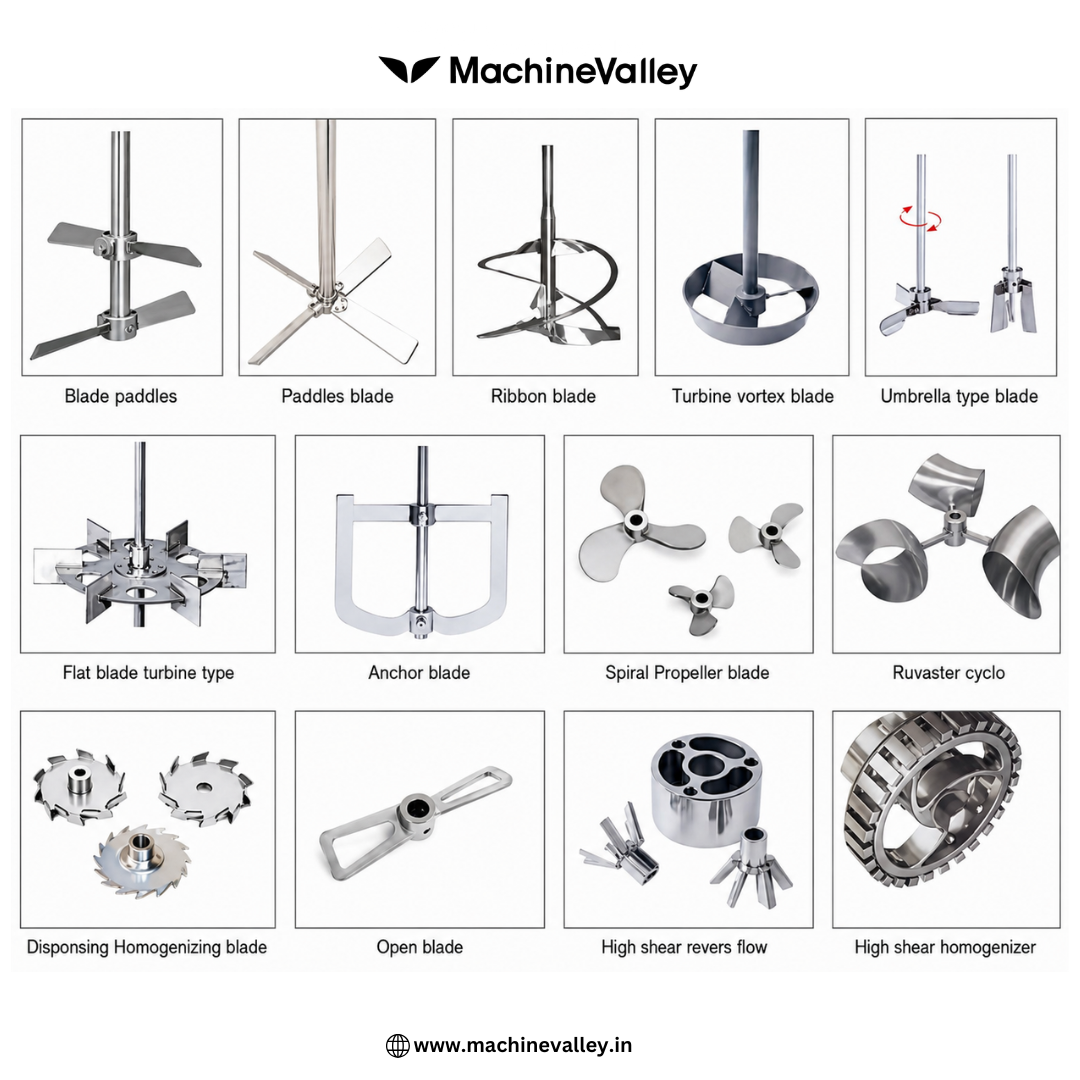

Blade Type Cowl Blade Cowl Blade Cowl Blade Cowl Blade
HSD-0.5

HSD-0.5

This High Speed Disperser Machine comes with capacity of mixing upto 500 liters of material in each batch.

HSD-1

HSD-1

This High Speed Disperser Machine comes with capacity of mixing upto 1000 liters of material in each batch.

HSD-1.5

HSD-1.5

This High Speed Disperser Machine comes with capacity of mixing upto 1500 liters of material in each batch.

HSD-2

HSD-2

This High Speed Disperser Machine comes with capacity of mixing upto 2000 liters of material in each batch.
