Continuous Type Bead Mill Machine

Highlights

Runs Continuous Feed without Batch Stops
Steady flow keeps cooling and Power stable
Handles low to medium Viscosity products

Supports single-pass or multi-pass grinding
Ideal for high-volume production lines
Exchangeable parts simplify maintenance work

MachineValley's Continuous Bead Mill is designed for uninterrupted, high-volume wet grinding and dispersion of liquid-phase materials. With a steady in-feed and out-feed cycle, it delivers consistent particle size reduction, higher throughput, and stable production.

Major Benefits

Consistent, Repeatable Particle Size Distribution
Reduced Downtime Between Production Cycles
Lower Energy Use Per Unit Output
Stable Quality Across Long Production Runs
Less Manual Handling and Lower Labor Cost
Reduced Wear Extends Equipment Life

Major Feature

Uninterrupted Continuous Feed & Discharge
Efficient Bead Separation System
Low-to-Medium Viscosity Compatibility
Enclosed Grinding Chamber Design
Integrated Cooling for Consistent Output
Minimal Manual Intervention Between Batches

Technical Information

Specification:1	CBM-20	CBM-30	CBM-60	CBM-100
Material Output:	4-6 Liter Per Min	6-10 Liter Per Min	6-20 Liter Per Min	15-35 Liter Per Min
Chamber Volume:	20 Liter	20 Liter	55 Liter	90 Liter
Bead Diameter:	0.8 -2 mm	0.8 -2 mm	0.8 -2 mm	0.8 - 2.2 mm
Disk Material:	SS, TC, HCHC( High Carbon High Chromium)	SS, TC, HCHC	SS, TC, HCHC	SS, TC, HCHC
Working Volume:	20 Liter	30 Liter	50 Liter	85 Litre
Tip Speed:	7-10 m/s	8-12 m/s	7-12 m/s	6-11 m/s
Stator Type:	SS, HCHC	SS, HCHC	SS, TC, HCHC	SS, HCHC
Rotors Type:	SS, HCHC	SS, HCHC	SS, TC, HCHC	SS, TC, HCHC
Pins:	Carbide	Carbide	Carbide	Carbide
Main Motor:	20HP	30HP	50HP	60HP

Machine Options

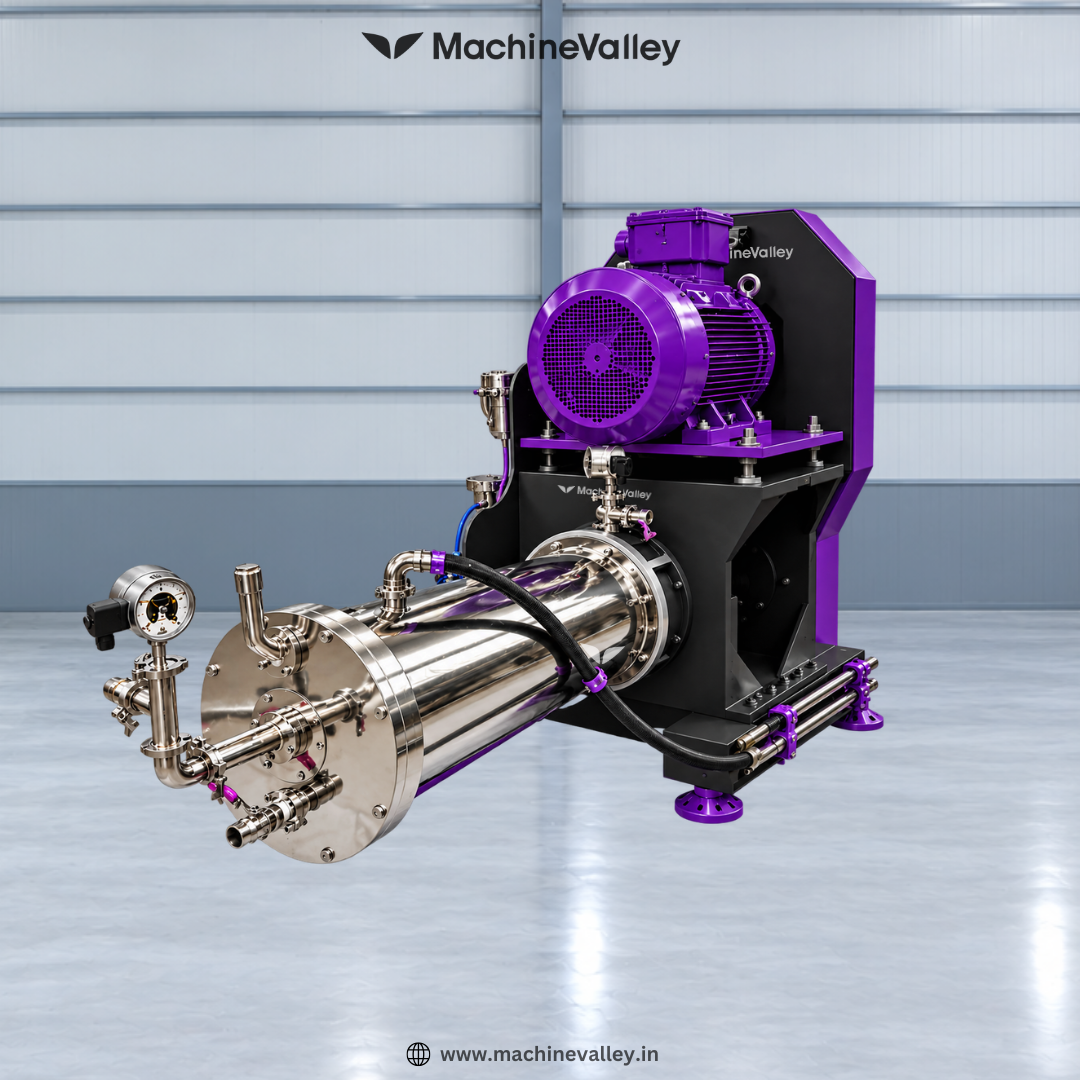

CBM-20

MachineValley's CBM-Series Continuous Bead Mill variant is built with a 20-liter grinding chamber for smaller production runs. It delivers the same efficient bead separation and cooling performance, suited to limited floor space.

CBM-30

This Machine offers 30-liter grinding chamber, making it well suited for mid-scale production of coatings, inks, and chemical dispersions.

CBM-60

Our machine offers a 60-liter grinding chamber, built for mid-scale industrial production where consistent output and higher batch volumes matter. It handles a wide range of viscosities for steady production runs.

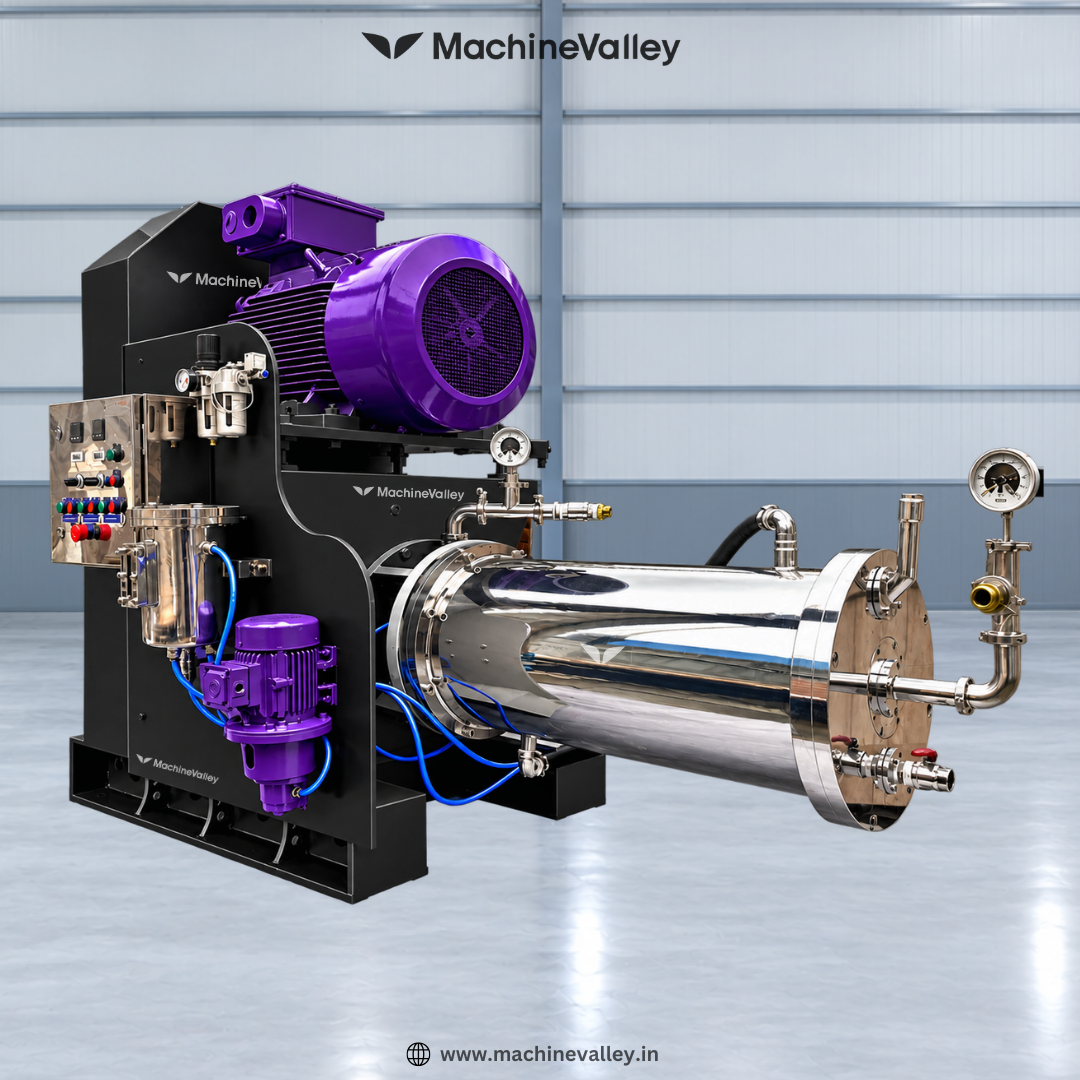

CBM-100

MachineValley flagship model in Bead continuous Mill line, featuring a 100-liter grinding chamber engineered for continuous, high-volume industrial production.

Application & Industry

Coatings and paints
Printing inks
Pigment dispersion
Chemical and agrochemical formulations
Mineral processing

Customization Options

Agitator Disc material (Alloy, PU-coated, or ceramic)
Stator Lining (Silicon Carbide, Alloy, Steel, or PU)
Screen Material (Stainless Steel or Ceramic)
Control Tier (Push-Button, Touchscreen, or Advanced automation)
Grinding Chamber volume as per Requirement
Standard or explosion-proof (Ex) certification

FAQ

No, exchangeable wear parts and an enclosed design keep maintenance needs low and reduce unplanned downtime significantly.

Agitator discs and stator linings come in alloy, PU-coated, or ceramic options depending on the application.

Yes, both standard (non-Ex) and explosion-proof (Ex) configurations are available for hazardous processing environments.

Chamber volume is selected based on required throughput, product viscosity, and target particle size for the application.

Options range from basic push-button control up to touchscreen or advanced automation with recipe and data tracking.
