Cenomic Bead Mill by MachineValley is a horizontal bead mill built for wet grinding and dispersion of low- to medium-viscosity products. The grinding chamber runs cooler, the beads separate more efficiently, and the result is finer particle size reduction, higher throughput, and lower energy use a good fit for coatings, inks, chemicals, and mineral processing.
| Specification: | C-20 | C-30 | C-60 | C-100 |
|---|---|---|---|---|
| Material Output: | 4-6 Liter Per Min | 6-10 Liter Per Min | 6-20 Liter Per Min | 15-35 Liter Per Min |
| Chamber Volume: | 20 Liter | 20 Liter | 55 Liter | 90 Liter |
| Bead Diameter: | 0.8 -2 mm | 0.8 -2 mm | 0.8 -2 mm | 0.8 - 2.2 mm |
| Disk Material: | SS, TC, HCHC( High Carbon High Chromium) | SS, TC, HCHC | SS, TC, HCHC | SS, TC, HCHC |
| Working Volume: | 20 L | 30 L | 50 L | 85 L |
| Tip Speed: | 7-10 m/s | 8-12 m/s | 7-12 m/s | 6-11 m/s |
| Stator Type: | SS, HCHC (High Carbon High Chromium) | SS, HCHC | SS, TC, HCHC | SS, HCHC |
| Rotors Type: | SS, HCHC (High Carbon High Chromium) | SS, HCHC | SS, TC, HCHC | SS, TC, HCHC |
| Pins: | Carbide | Carbide | Carbide | Carbine |
| Main Motor: | 20HP | 30HP | 50HP | 60HP |
MachineValley's C-Series Cenomic Bead Mill variant, built with a 20-liter grinding chamber for smaller production runs. It delivers the same efficient bead separation and cooling performance, suited to limited floor space.

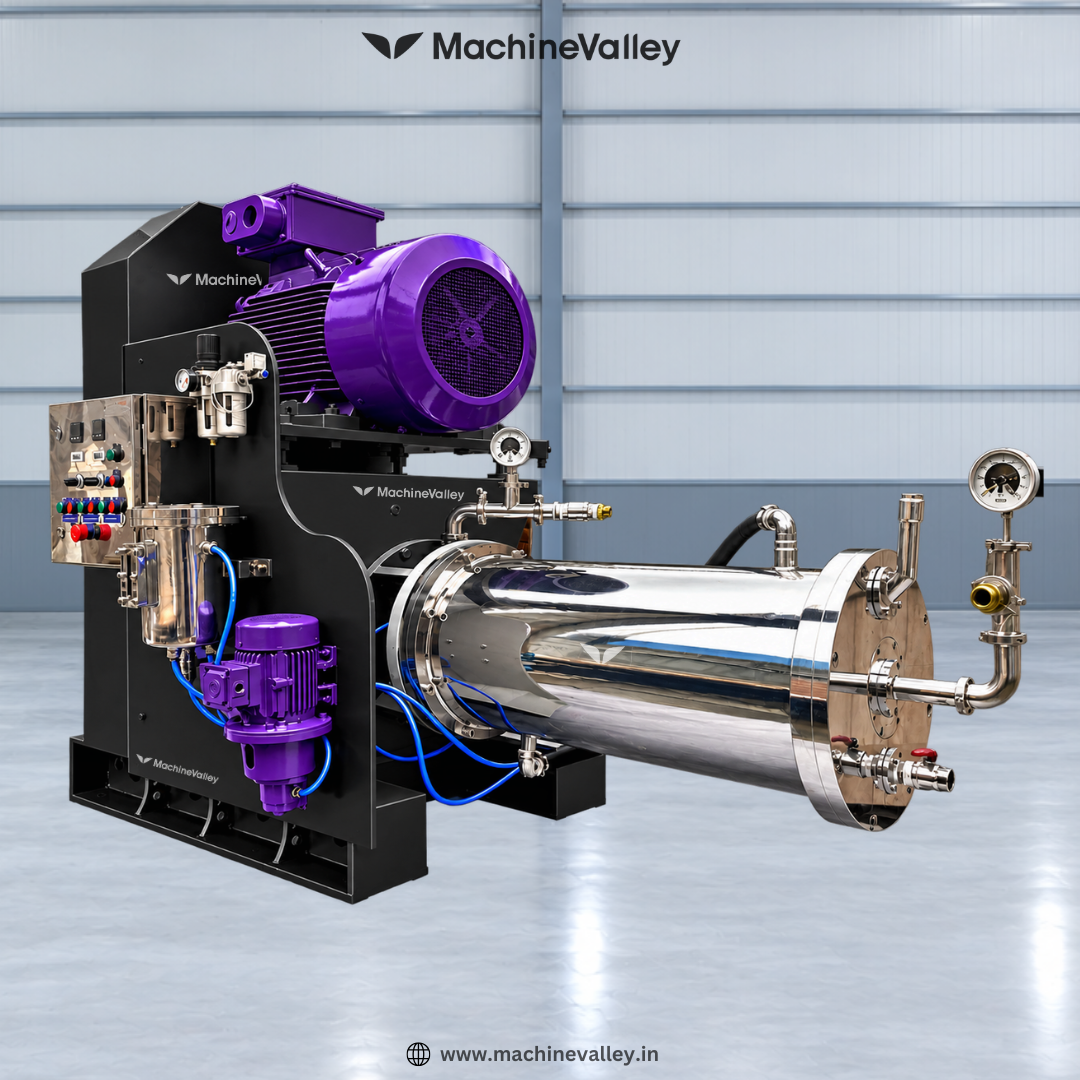

This Machine offers 30-liter grinding chamber, making it well suited for mid-scale production of coatings, inks, and chemical dispersions.

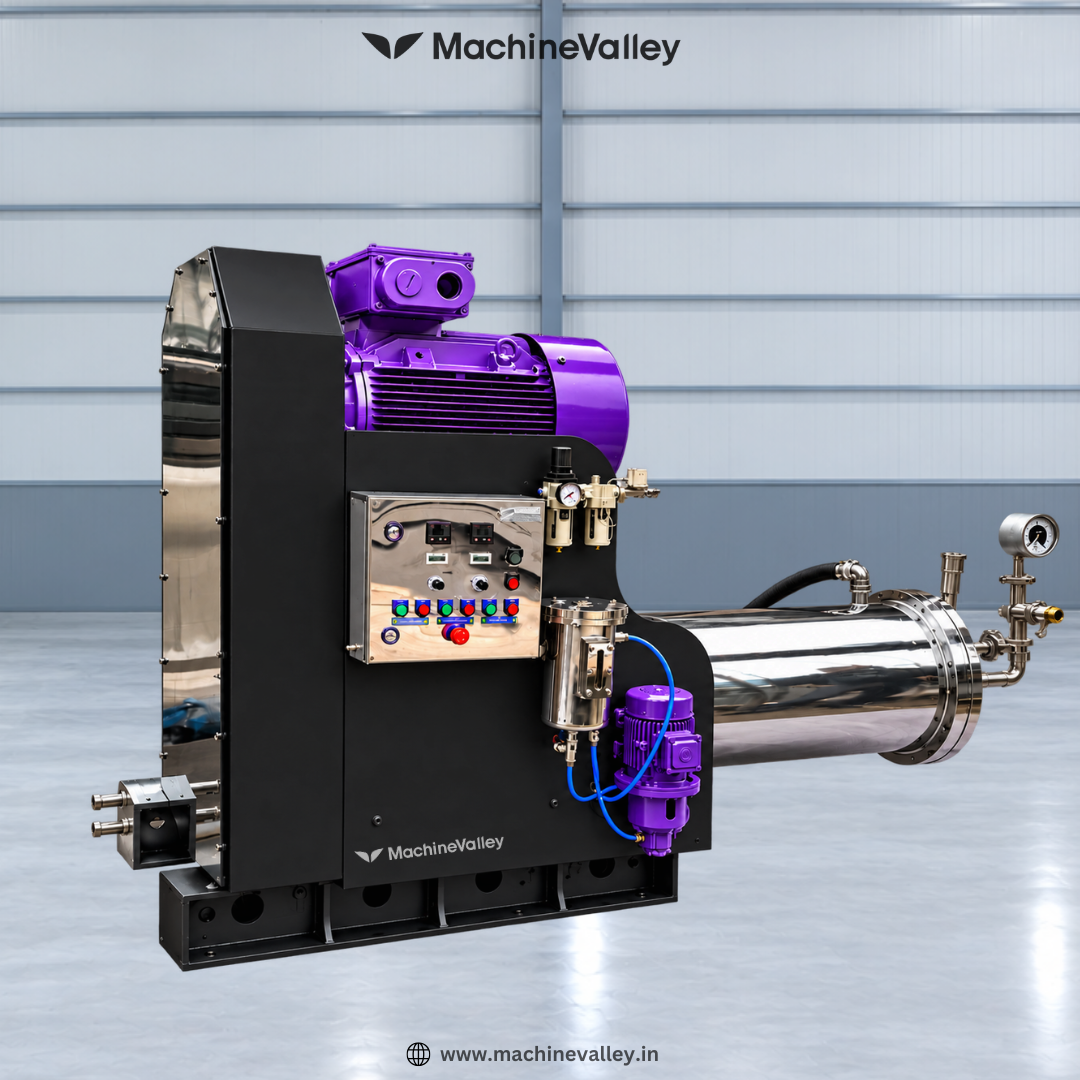

Our Cenomic Mill offers a 60-liter grinding chamber, built for mid-scale industrial production where consistent output and higher batch volumes matter. It handles a wide range of viscosities for steady production runs.

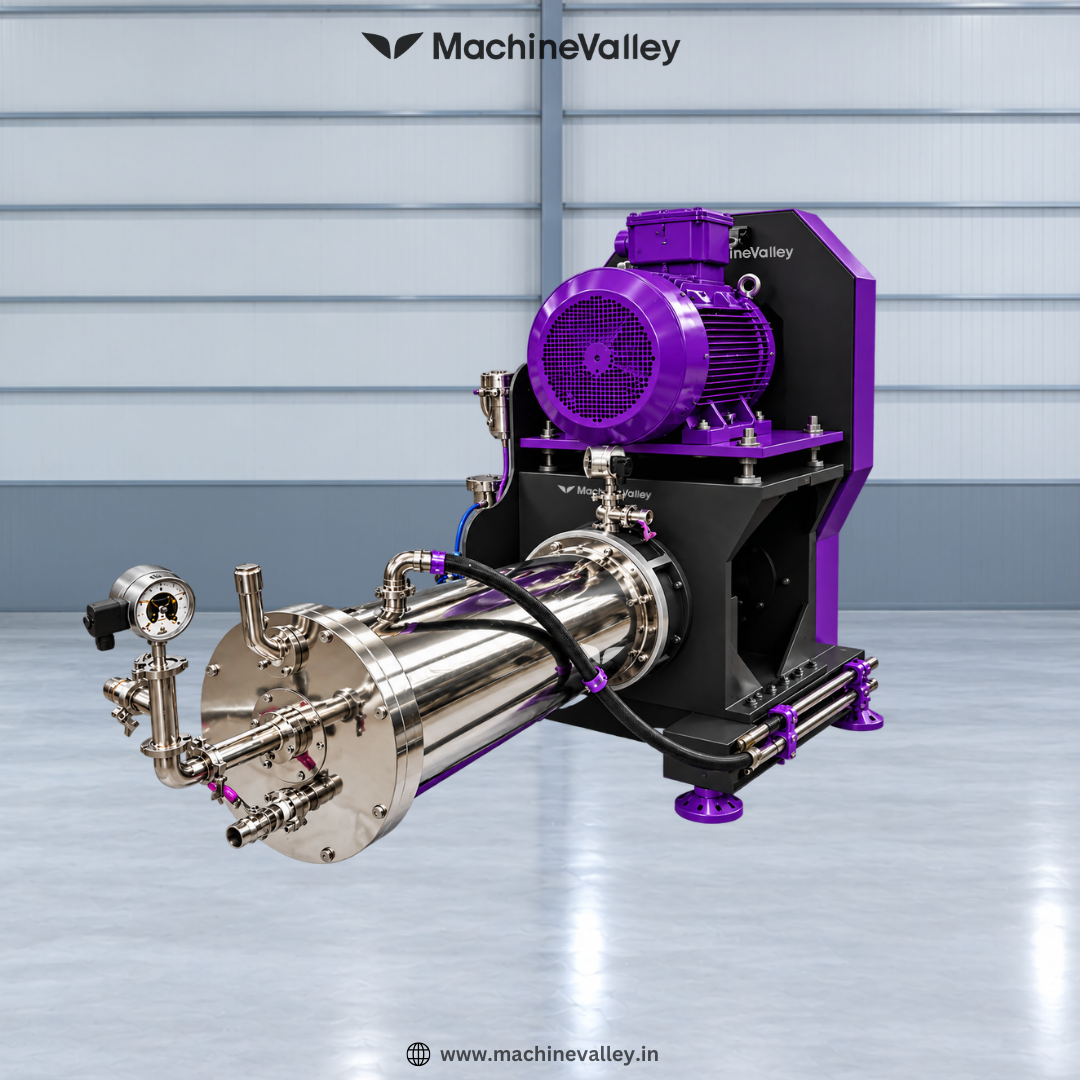

MachineValley C-series is the flagship model in Cenomic Bead Mill line, featuring a 100-liter grinding chamber engineered for continuous, high-volume industrial production.
It's used for wet grinding and dispersion of pigments, coatings, inks, and chemicals into fine, uniform particles.
It reduces particles down to the sub-micron and nanometer range, depending on bead size and processing time.
The Cenomic Bead Mill handles low- to medium-viscosity products, from thin liquids to medium-viscosity pastes.
Yes, the mill handles oil-based, solvent-based, water-based, and UV-curable formulations with consistent and repeatable output every batch.
Yes, it's available in both standard non-Ex and explosion-proof (Ex) configurations for hazardous industrial environments.
Maintenance needs are low thanks to wear-optimized design, though intervals depend on formulation abrasiveness and usage.
