Vacuum High-Speed Disperser with Scraper

Vacuum High Speed Disperser with Scraper

Highlights

Bubble-Free Mixing with Scraper
High-Speed Dispersion Cowl Blade
Cleaning with Efficient Wall Scrapper

Easy-Operated Hydraulic Lifting System
Uniform Mixing Quality of Products
Heavy-Duty SS or MS Construction

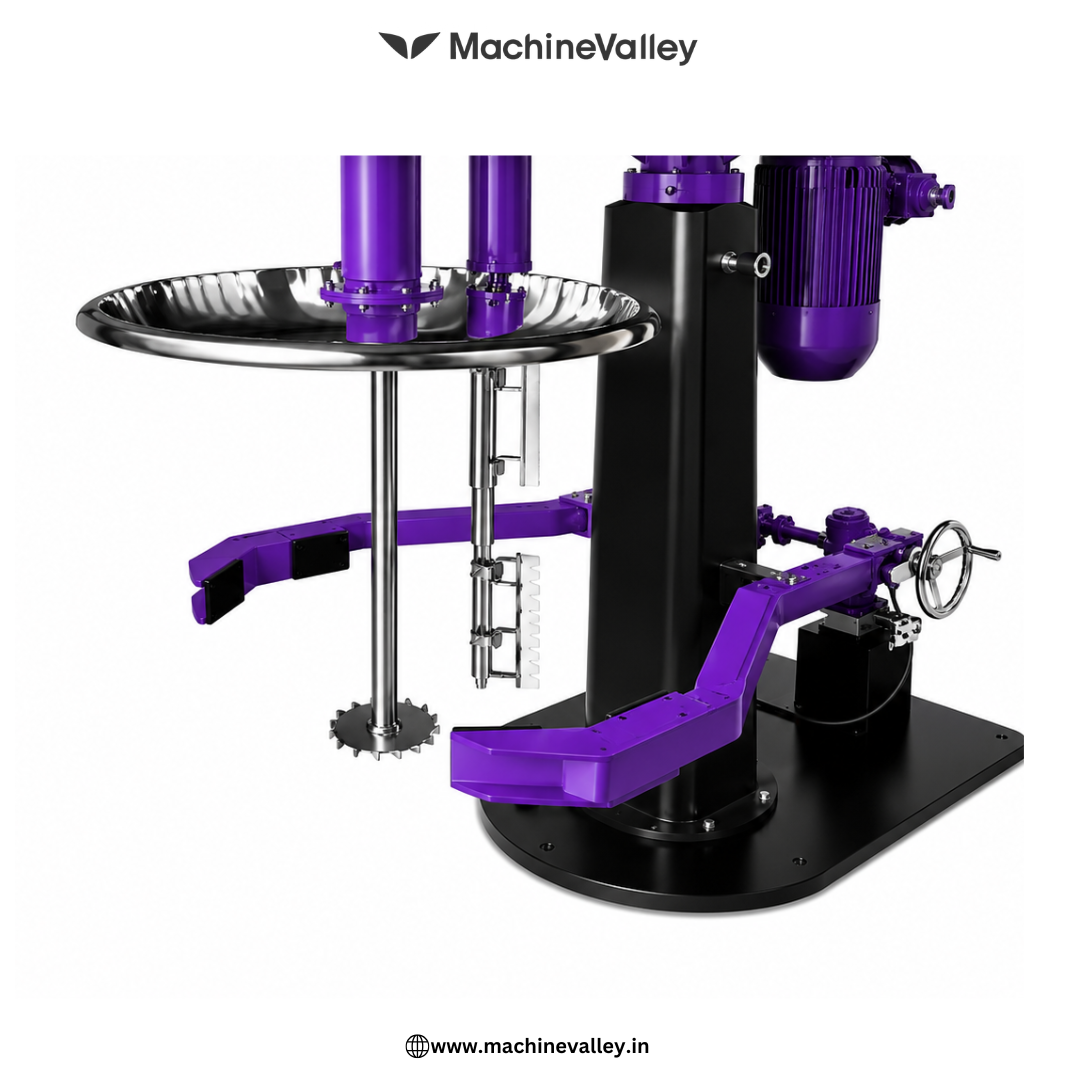

Vacuum High Speed Disperser with Scraper

Vacuum High Speed Disperser is an advanced industrial mixing solution designed for efficient dispersion and homogenization of high-viscosity materials. This Vacuum High Speed Disperser with Scraper combines high-speed mixing, vacuum technology, and an efficient wall scraper to produce smooth, bubble-free, and uniform products.

Major Benefits

Vacuum technology for air-free mixing
High-speed disperser for rapid mixing
Efficient wall scraper for complete blending
Hydraulic lifting mechanism for easy operation
Variable speed control with VFD
Suitable for high-viscosity materials

Major Feature

Eliminates air bubbles from products
Delivers smooth and uniform mixing
Reduces mixing and processing time
Prevents material sticking on vessel walls
Increases production efficiency
Low maintenance and long service life

Technical Information

TSD WITH SCRAPER1	TSD-0.5	TSD-1	TSD-1.5	TSD-2
WORKING CAPACITY (LTR)	500 LTR	1000 LTR	1500 LTR	2000 LTR
HIGH-SPEED MOTOR (HP)	5HP	10HP	15HP	25/30HP
HIGH-SPEED MOTOR (RPM)	0~1440	0~1440	0~1440	0~1440
SHAFT DIAMETER (MM)	50MM	55MM	65/70MM	80MM
BLADE DIAMETER (MM)	150MM	200MM	250MM	300MM
SLOW-SPEED MOTOR (HP)	5HP	7.5HP	10HP	10HP
SOW-SPEED MOTOR (RPM)	0~1440	0~1440	0~1440	0~1440
SHAFT DIAMETER (MM)	55MM	65MM	75MM	85MM
BLADE DIAMETER (MM)	120MM	150MM	150MM	200MM
GEAR BOX - 4" CENTRE	(RATIO) 15:1	(RATIO) 15:1	(RATIO) 15:1	(RATIO) 15:1
BLADE TYPE	SCRAPPER	SCRAPPER	SCRAPPER	SCRAPPER
HYDRAULIC MOTOR (HP)	1HP	1HP	2HP	2HP

Machine Options

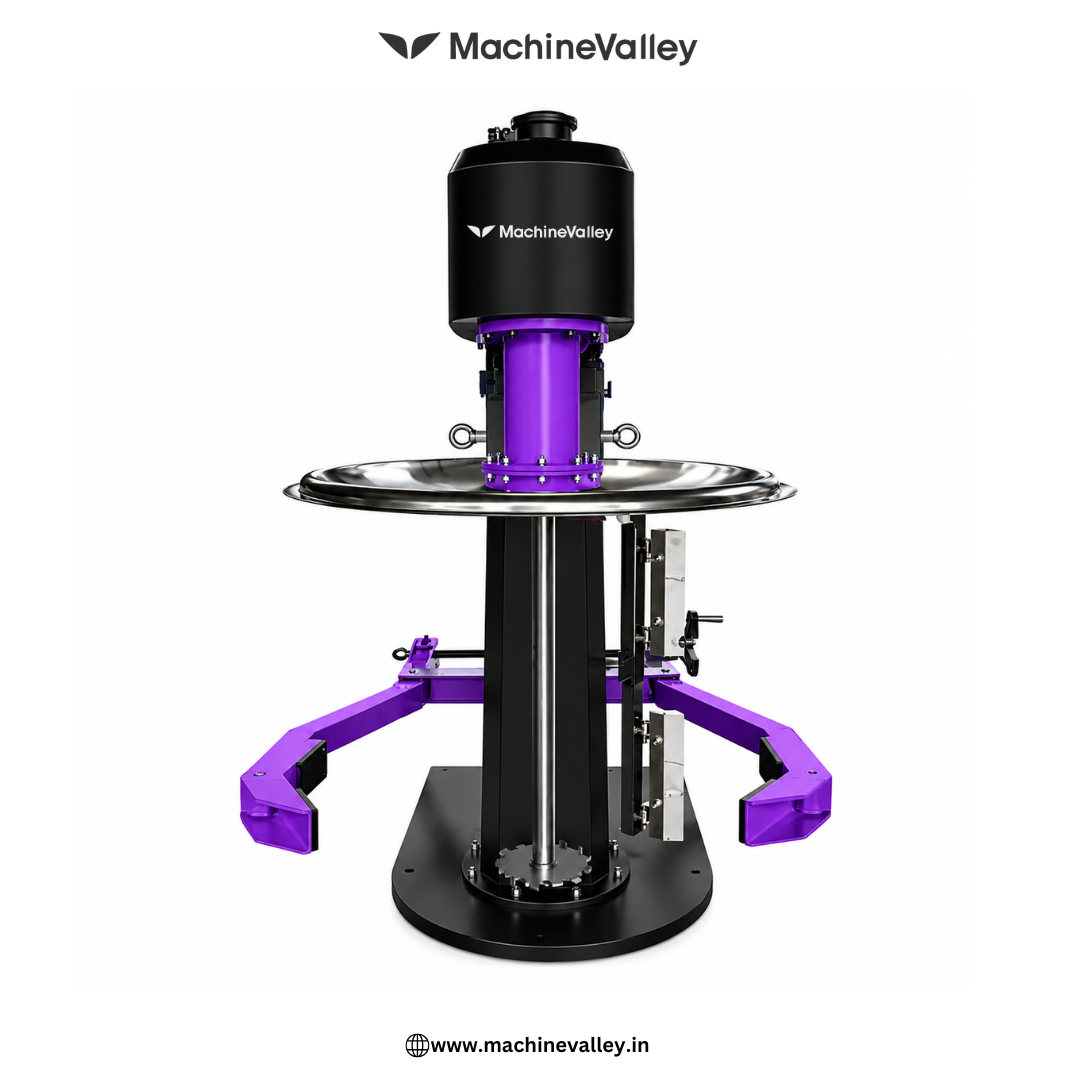

TSD-500

500-Liter Vacuum High-Speed Disperser
Sized for mid-batch production, this 500-liter unit mixes high-viscosity materials while pulling entrapped air out at the same time. The wall scraper keeps material off the vessel sides as it runs, so batches come out smooth and bubble-free without manual cleanup between runs.

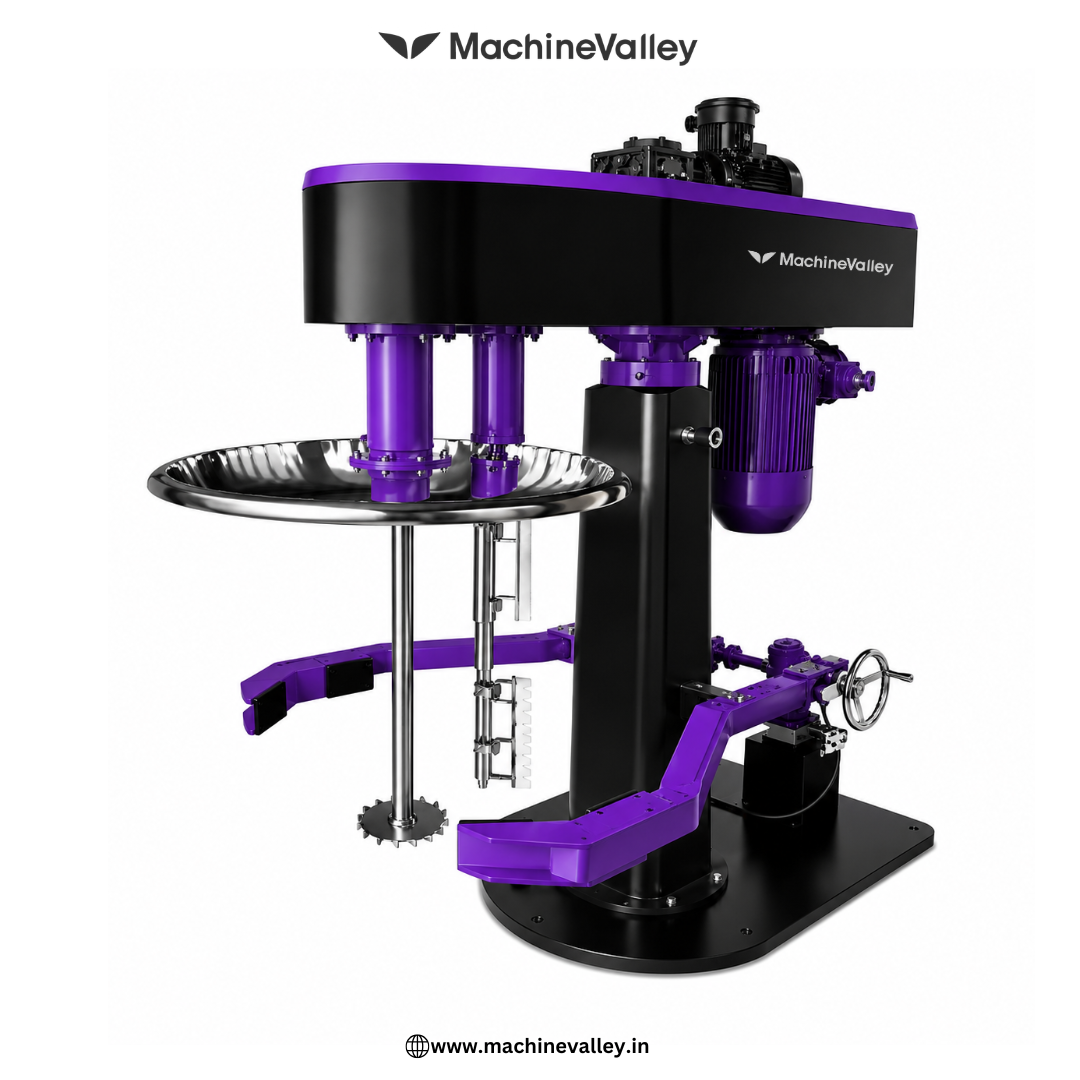

TSD-1000

1000-Liter Vacuum High Speed Disperser
Built for higher-volume runs, the 1000-liter model handles the same mixing and continuous wall scraping as the smaller units, just scaled up. Good fit for manufacturers moving past pilot batches into steady production without sacrificing mix uniformity.

TSD-1500

1500-Liter Vacuum High Speed Disperser
At 1500 liters, this machine is built for plants running larger batches of paints, coatings, or adhesives on a regular schedule. The hydraulic lift and scraper work the same way as on smaller machines, just with a vessel sized to cut down on batch-to-batch changeovers.

TSD-2000

2000-Liter Vacuum High Speed Disperser
The 2000-liter version is aimed at high-volume production lines where fewer, bigger batches make more sense than running the machine constantly. Vacuum mixing and wall scraping stay consistent at this scale, so quality doesn't drop off as batch size goes up.
