Dyno Mill is an agitator bead mill with a horizontal grinding chamber, engineered for dispersion and ultra-fine wet grinding in a completely enclosed system suited for products ranging from low-viscosity liquids to highly viscous, pumpable materials.
| Specification:1 | MVDM-10 | MVDM-15 | MVDM-20 | MVDM-25 |
|---|---|---|---|---|
| Material Output: | 1-3 Liter Per Min | 2-6 Liter Per Min | 4-10 Liter Per Min | 6-12 Liter Per Min |
| Bead Diameter: | 0.8 -2 mm | 0.8 -2 mm | 0.8 -2 mm | 0.8 -2 mm |
| Disk Material: | SS, TC, HCHC (High Carbon High Chromium) | SS, TC, HCHC | SS, TC, HCHC | SS, TC, HCHC |
| Working Volume: | 6.5 L | 14.5 L | 18.5 L | 25 L |
| Tip Speed: | 0-13 m/s | 0-13 m/s | 0-13 m/s | 0-13 m/s |
| Gap Separator Rings: | Tungsten Carbide | Tungsten Carbide | Tungsten Carbide | Tungsten Carbide |
| Main Motor: | 10 HP | 15 HP | 25 HP | 30HP |

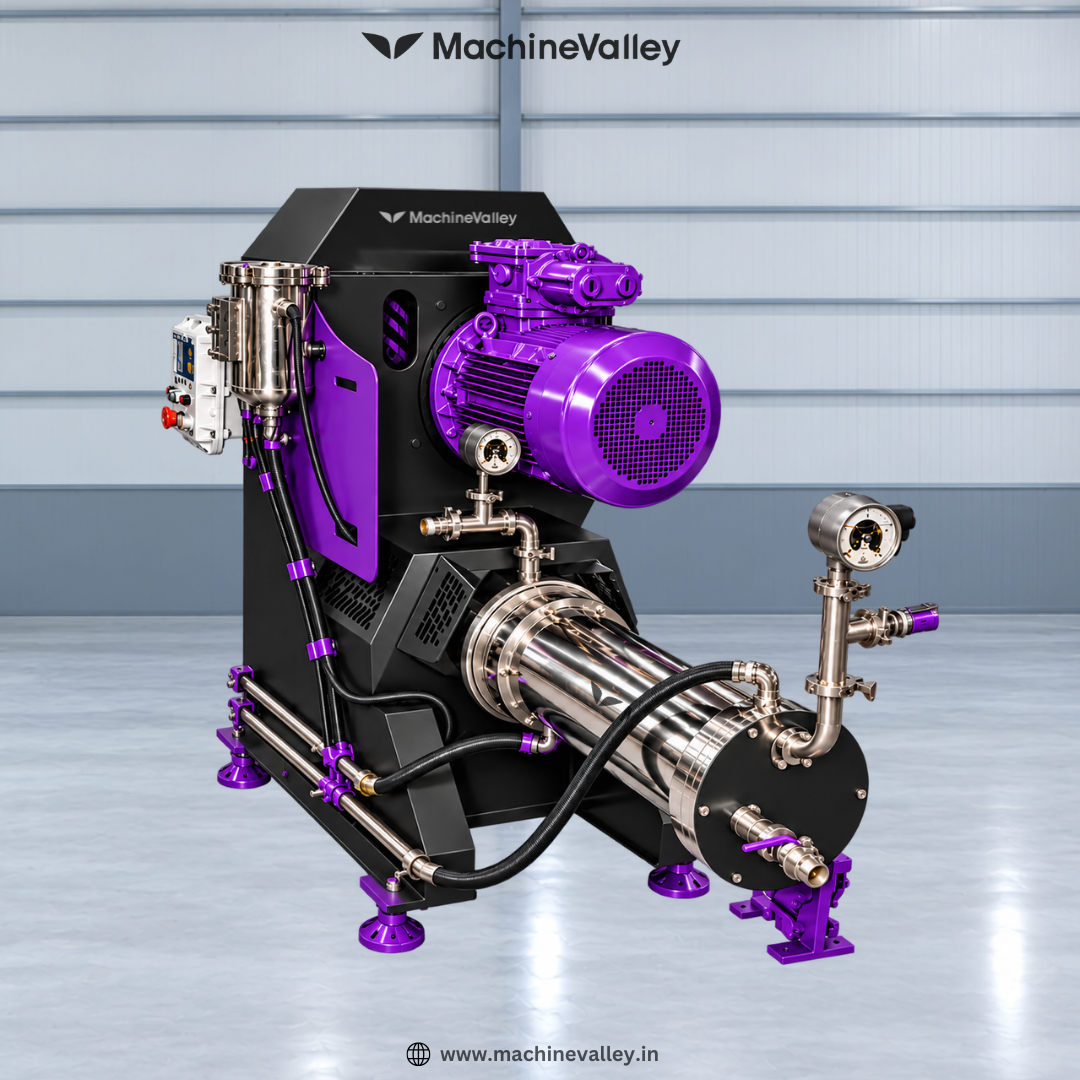

Built for continuous processing of 10 Liters of raw material per chamber, the MVDM-10 delivers a steady output of 2–3 liters of finely ground material every minute, ideal for small-batch and pilot-scale operations.
Handling 15L of raw material per chamber, MVDM-20 steps up throughput with 4-7 liters of fine output per minute, striking the right balance between capacity and precision for growing production needs.
With a 20L chamber capacity, MVDM-20 significantly boosts efficiency, processing raw material continuously to deliver 10–12 liters of finely ground output every minute, making it a strong fit for mid-scale production lines.
Engineered for high-volume operations, MVDM-25 processes 25L of raw material per chamber in a continuous flow, producing 15–18 liters of fine material per minute, and is built for demanding, large-scale grinding requirements.
Yes, Dyno Mill is available with a flameproof motor and a sealed chamber design for safe operation in hazardous environments and is commonly used in solvent-based paint, ink, and chemical processing applications.
Yes, Dyno machine can be fitted with a cooling or heating jacket, along with integrated temperature monitoring, to keep the product within a safe processing range during continuous grinding.
Output rate depends on the model's chamber capacity, feed pump speed, product viscosity, and target fineness: for example, THM-10 delivers 2–3L/min while THM-30 delivers up to 15–18L/min, depending on process settings.
Bead selection depends on the product's viscosity and target particle size: zirconia and ceramic beads are commonly used for fine pigment and ink dispersion, while glass or steel beads suit coarser or higher-viscosity applications.
